Croplands
As a Croplands Master Dealer, these vineyard sprayers make up the majority of our business, with all Quantum and Vinepro Vineyard Sprayers built in our Renwick workshop. These sprayers are crucial when it comes to disease control, spray coverage and performance efficiency in your vineyard.
The high-volume, turbulent air delivered by Croplands Quantum sprayers opens up the foliage, allowing spray to penetrate into very dense canopies, ensuring more accurate coverage onto both sides of the leaves and into the tightest of bunches. It is this technology that makes Croplands fans quite simply the best on the market.
We have a full suite of Quantum sprayers available, each skillfully built by our team and delivered to your preferred site. We’ll keep you fully updated on its progress and work through any changes or modifications you need. We’re proud to be able to offer Croplands Quantum Vineyard Sprayers ‘built locally, by locals, for locals’.
Check out the range below:

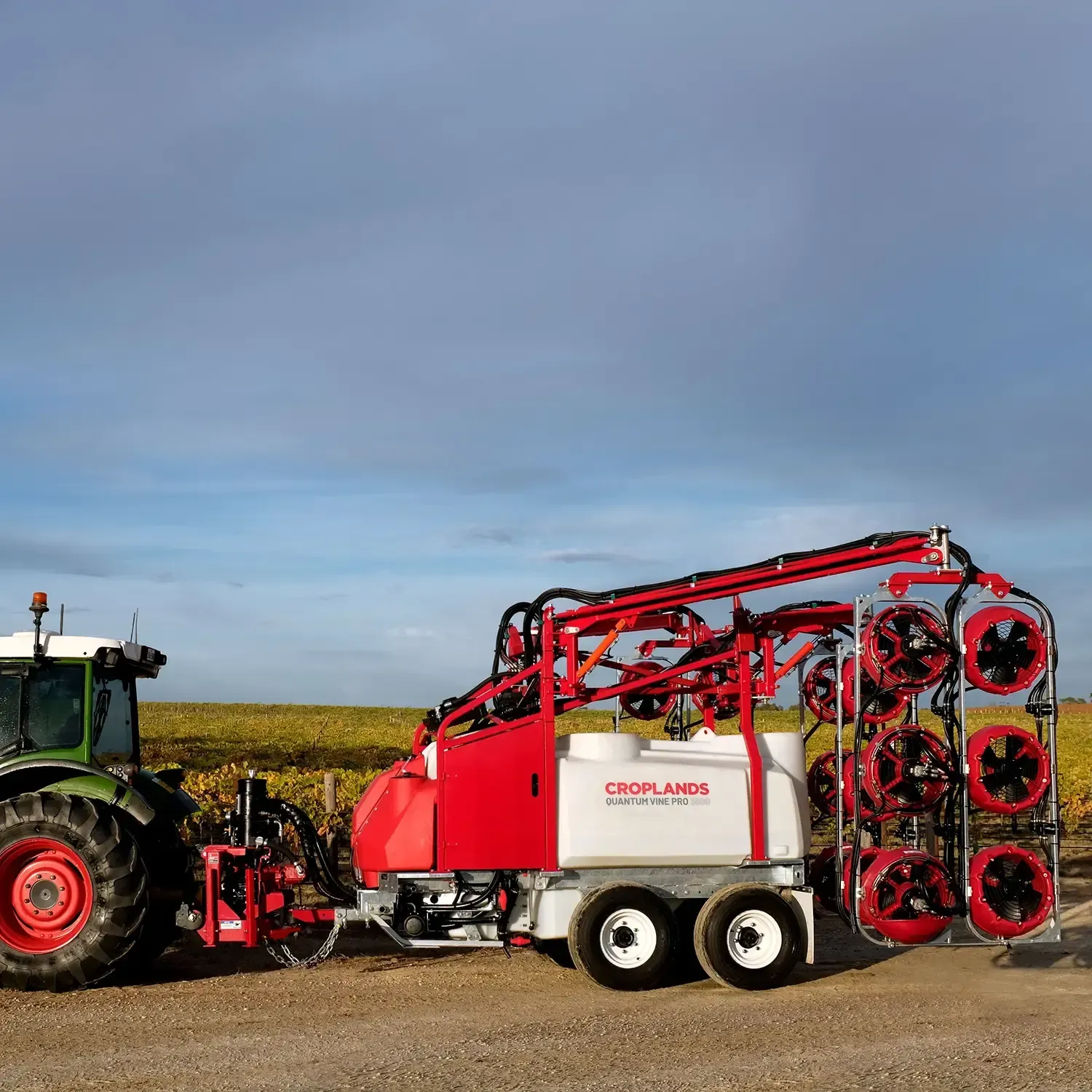

Quantum Vine Pro
NEW in 2024, Quantum Vine Pro redefines the benchmark for larger scale trailed vineyard spraying. After years of market research, customer collaboration and testing, the Quantum Vine Pro is strong, agile and easy to operate.
- Fans – Individual QM-420 hydraulically driven from the tractor hydraulics or via optional compact, self contained Micro Power Pack. 8, 12 or 18 x fan configurations. In cab electric fan speed control with ‘ wind comp’ feature as standard. Dual spray ring fitted with 10 x Albuz ATI-80 hollow cone nozzles per fan.
- Fan Frame – Fans are mounted in a protective frame allowing simple, precise fan position settings. New heavy duty fan frame mounting with improved breakaway dampening.
- Tanks – New 2500 or 3500 polyethylene main tanks improve centre of gravity. 300 litre flush and 15 litre fresh water (independent) tanks.
- Boom – New heavy duty mid mount, 2 or 3 row over row parallelogram boom with auto boom width function. New hydraulic adjustable inner/rear boom for more precise fan positioning in varying row widths with optional auto boom width function. New optional hydraulic adjustable left/right outer row terracing kit. New optional hydraulic adjustable left/right inner row terracing kit.
- Chassis / axle / wheels – New full length, heavy duty galvanised chassis and heavy duty 3 point self steer drawbar. New tandem walking beam axle in narrow or wide track options. 11.5/80 x 15.3 AWT tyres fitted asstandard. Floatation tyres optional.

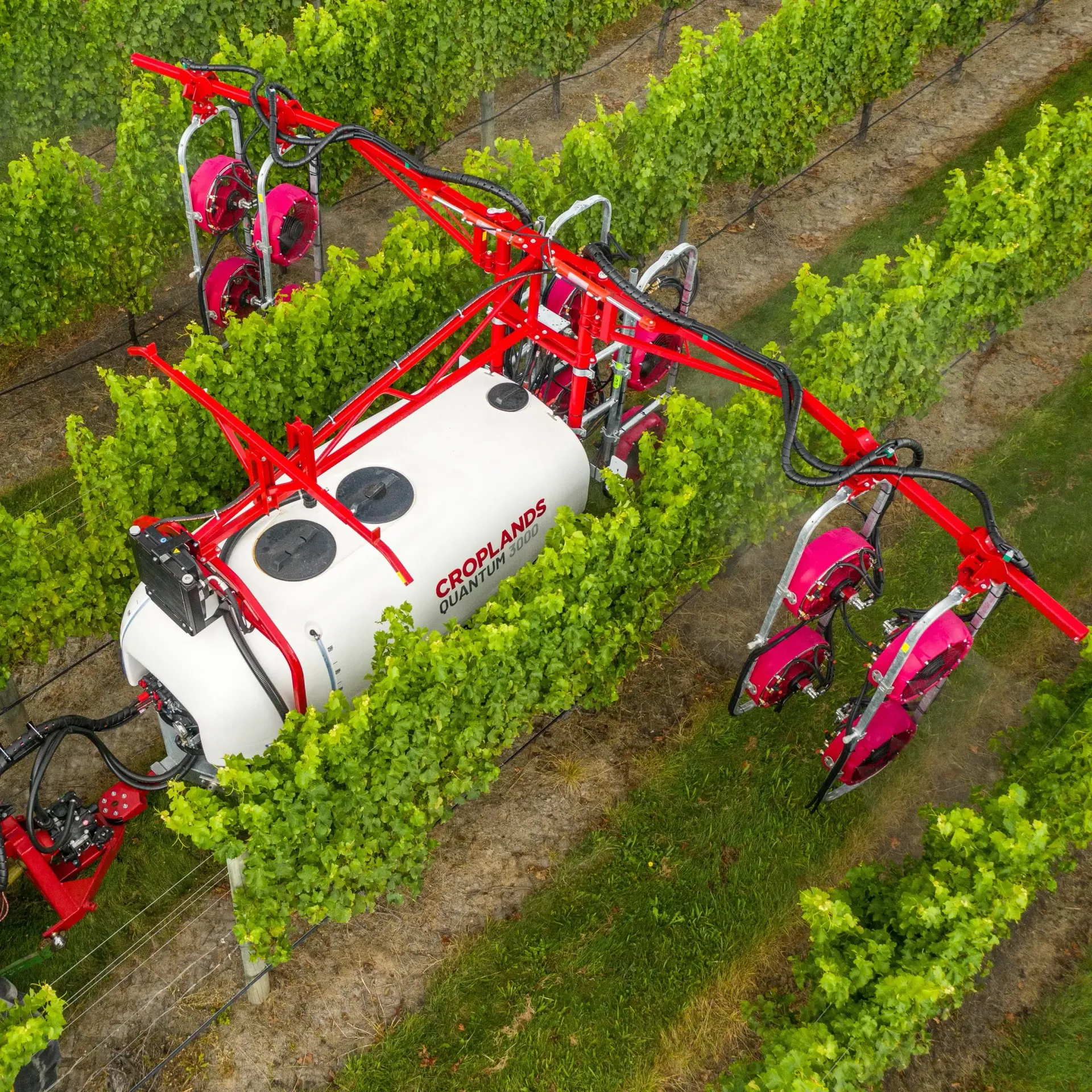

Quantum 420 Multi Row
Croplands Quantum multi-row sprayers have been providing grape growers with industry leading coverage for over 20 years. Incorporating the new QM-420 fan with dual spray ring and fan frame design, the Quantum 420 models take this proven formula to the next level.
- Fans - Individual QM-420 fans, hydraulically driven from the tractor hydraulics or via optional Micro Power Pack. Dual spray ring allows for three-tier spray rate solution (low, medium and high), manually adjustable from the ground. Optional upwind/downwind fan speed compensation – an extremely effective system for improving spray coverage and minimising off-target spray.
- Fan frame - New design fan frame system offers added protection and allows for precise, simple fan position settings.
- Boom - Heavy-duty boom with excellent adjustability for varying row widths.
- Drive - Tractor-driven hydraulic oil supply is standard on all models up to 12 fans. Optional Micro Power pack.
- Pumps - AR-185 LFP as standard for 8 and 12 fan models. AR-250 LFP as standard for 18 fan models.
- Nozzles - 10 x nozzles per QM-420 mm fan, available in 80, 60 and 40-degree options.
- Tanks - High impact, UV-stabilised polyethylene tanks fitted with flushing and fresh water tanks. Available in 2200L, 3000L and 4000L models.
- Chassis/axle - Hot-dipped galvanised chassis with single step. Self-steer draw bar and tandem walking beam axles standard on all models. Optional flotation tyres for low compaction solution.
- Micro power pack - Compact, self-contained hydraulic oil supply system designed to drive QM-420 fans independent to the tractor hydraulic system. Improves tractor efficiency and allows smaller model tractors to power Quantum sprayers. Equipped with a safety cut off switch, the MPP shuts down if the oil level drops. Optional biodegradable oil.

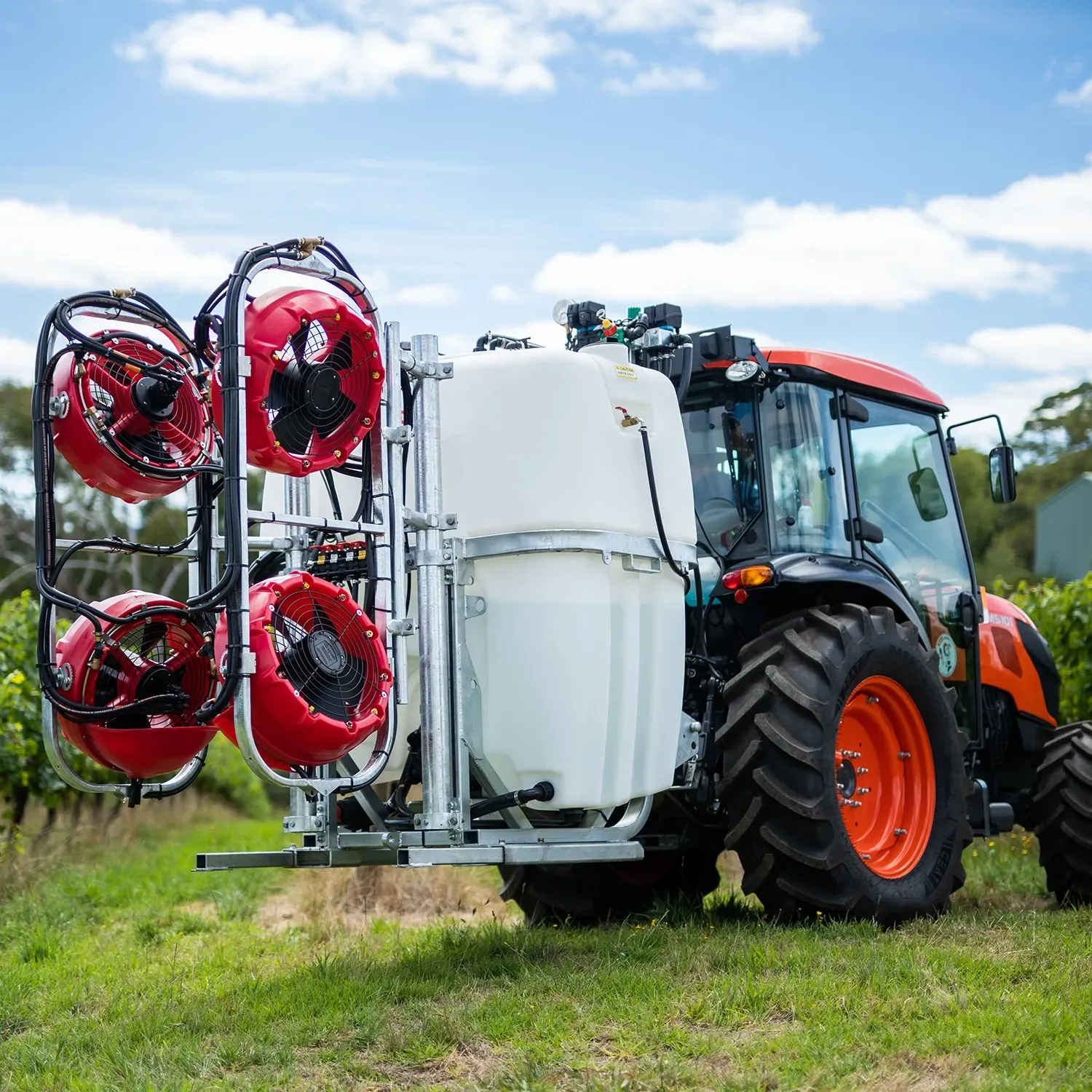

Quantum 420 Linkage
Ideal for narrow row spacings or challenging topography. Quantum 420 linkage sprayers deliver premium crop protection through the new QM-420 fan with dual spray ring and fan frame design.
- Fans - Individual QM-420 fans, hydraulically driven simultaneously from the tractor hydraulics. The QM-420 fan delivers turbulent, high volume air for optimum canopy penetration and coverage.
- Tower - Heavy-duty rear tower with adjustability for varying row widths. Fans mounted in a new fan frame system, offering added protection and allowing for precise, simple, fan position settings.
- Drive - Tractor driven hydraulic oil supply is standard.
- Pump - AR-80 LFP positive displacement pump as standard. Optional AR-135 LFP pump for higher volume applications.
- Nozzles - 10 x nozzles per QM-420 mm fan, available in 80, 60 and 40-degree options.
- Tank - High impact, UV-stabilised polyethylene tanks fitted with separate flushing and fresh water tanks. Available in 600L, 800L and 1000L models.
- Frame - Heavy-duty, hot-dipped galvanised frame.

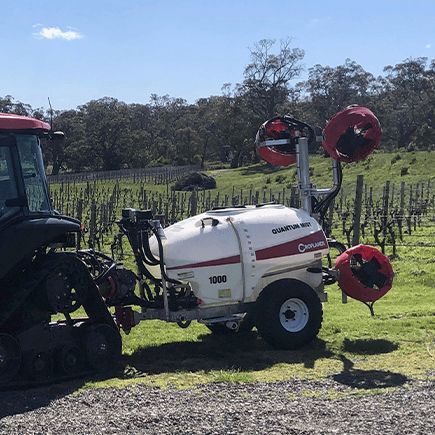

Quantum 1000 Trailed
High quality and cost effective. Perfect for growers with smaller or boutique operations. The compact 1000-litre Quantum Trailed sprayer offers the benefits of the larger Quantum models on a smaller scale. Delivering the turbulent, high volume air that Quantum sprayers are known for.
- Fans - Individual QM-420 fans, hydraulically driven from the tractor hydraulics. The QM-420 fan delivers turbulent, high volume air for optimum canopy penetration and coverage.
- Tower - Single pole tower. Adjustable fan clamping brackets for precise fan positioning to the canopy.
- Drive - Tractor driven hydraulic oil supply is standard.
- Pump - AR-140 LFP positive displacement pump as standard.
- Nozzles - 10 x nozzles per QM-420 mm fan, available in 80, 60 and 40-degree options.
- Tank - High impact, UV-stabilised polyethylene 1000-litre tank fitted with separate flushing and fresh water tanks.
- Chassis/axle - Hot-dipped galvanised chassis with standard drawbar fitted. Optional Self-steering drawbar. Adjustable width axle fitted with 10.0/80 x 12 implement tyres.

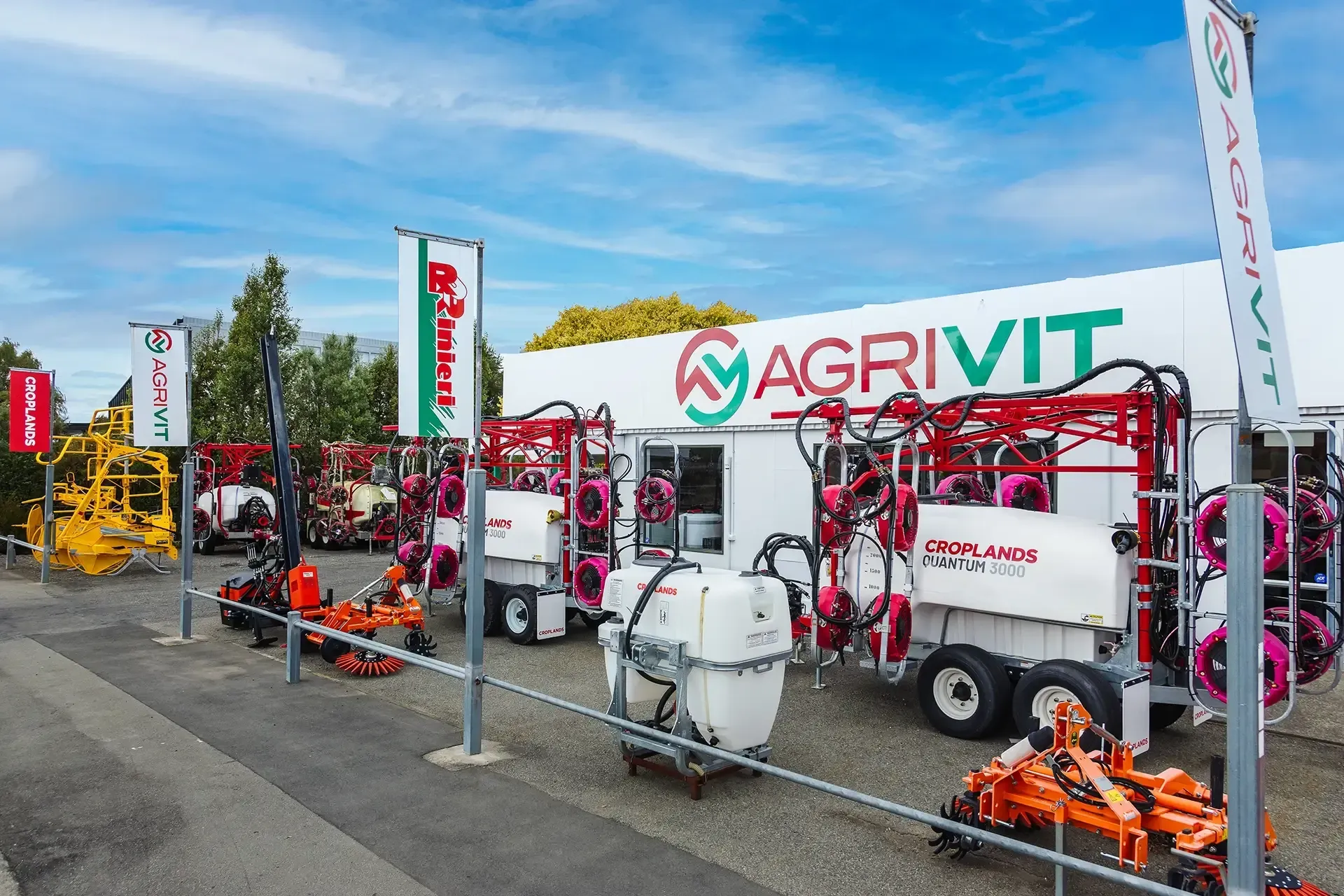

Alongside these machines, as the Croplands Master Dealer for the Marlborough region, we have an extensive range of parts (more than anyone in the whole of Australasia!), which enables us to offer fast, reliable repairs and servicing right here in Marlborough. What we don’t know about these machines is really not worth knowing. Give us a call to talk through your tailored sprayer needs today.
